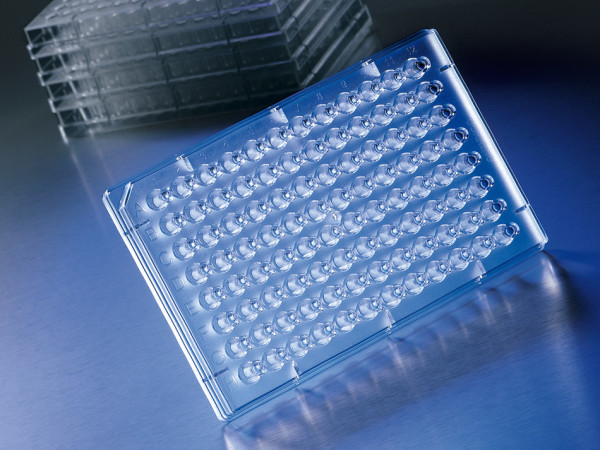

Corning® CrystalEX™ 96-well Round Bottom Protein Crystallization Microplate, Advanced Polymer, 10 per Bag, Not Treated, Nonsterile

96-well Microplates

• Features 96 large reservoir (reagent) wells and 96 corresponding protein wells
• Conical bottom protein wells allow improved centering of the protein drop.
• Compatible with manual pipettors and automation
• Novel merged well design provides efficient vapor space for protein crystallization.
• Reservoir and protein wells are positioned to be compatible with multi-head dispensing equipment.

384-well Microplate

• Meets ANSI/SBS standard footprint dimensions for microplates
• Ideal for fully automated crystal screening
• Features 192 reservoir wells and 192 corresponding protein wells
• Flat bottom protein wells are optimized for imaging of crystals.
• Reservoir and protein wells are positioned to be compatible with multi-head dispensing equipment.

• Designed for sitting-drop vapor diffusion high throughput protein crystallization
• Features 96 reservoir wells and 96 corresponding protein wells
• Conical bottom protein wells provide better centering of the protein drop
• Total well volume for the reservoir well is 210 µL; for the protein well is 10 µL
• Working volume for the reservoir well is 25 to 150 µL
• Compatible with 8 and 12 channel manual pipettors, automated liquid handling work stations and imaging systems
• Novel merged well design provides efficient vapor space for protein crystallization
• Manufactured from an advanced polymer with high resistance to commonly used solvents, including acetone, acetic acid, butanone, ethanol, isopropanol, methanol, DMSO, nitric acid (65%), sulfuric acid (40%), hydrochloric acid (36%), and ammonia solution (33%)
• Low background polarization and high optical clarity allows protein crystals to be easily viewed under polarized light with minimal background interference
• Low water absorption of the polymer prevents loss of protein drop volume
